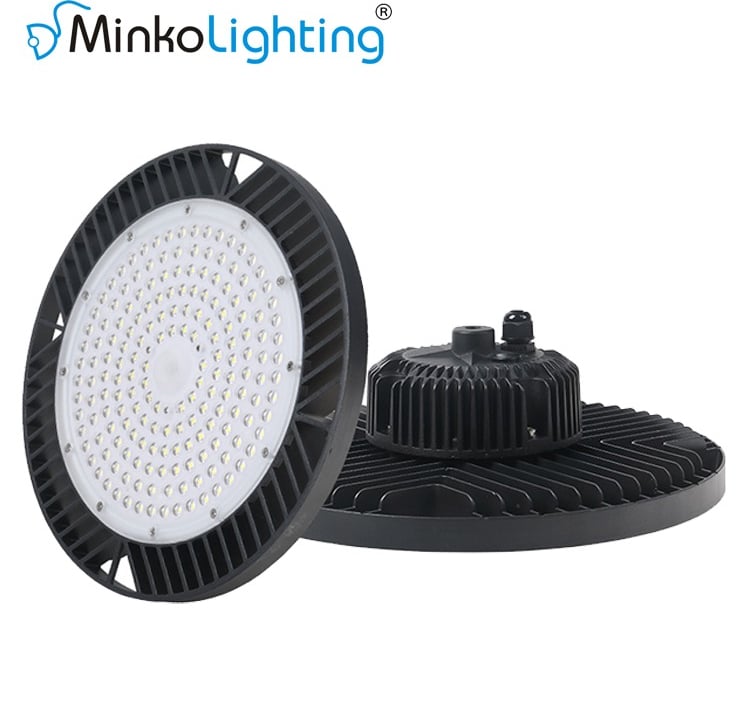

how to select led high bay light
how to select led high bay light

Industrial & Mining Lamps: A Practical Buyer’s Guide

(What they are, how they work, and how to pick the right one)

1. What exactly is an “industrial & mining lamp”?

In everyday English the term covers any rugged luminaire designed for high-bay factories, underground tunnels, open-cast mines, refineries, ports or heavy workshops. Compared with normal ceiling lights they must survive vibration, dust, water, chemical vapour, explosive gas, flying stones and 24 h × 365 day operation. Chinese traders usually shorten the phrase to “工矿灯”, but the international keywords you will see in catalogues are:

- High-bay / low-bay LED luminaire

- Explosion-proof (Ex-d, Ex-e, Ex-nA)

- IP65–IP68 weather-proof

- IK08–IK10 impact-proof

- 0–10 V / DALI / Zigbee smart control ready

2. A 30-second history (so you know why LED is now king)

1960-1990: 250–1000 W incandescent or mercury-vapour bulbs, 8–15 lm W⁻¹, lifetime 2 kh.

1990-2010: 250–400 W high-pressure sodium (HPS) or metal-halide (MH), 80–110 lm W⁻¹, lifetime 12 kh, but bad CRI 20–65, long re-strike time 5–15 min.

2010-today: 50–400 W LED, 130–190 lm W⁻¹, lifetime 50–100 kh, instant on, CRI 70–95, and—crucially—total cost of ownership drops 40–70 % versus HPS.

3. The physics you actually need to remember

Luminous efficacy: lm W⁻¹. Divide the lumen package by the wattage; anything below 120 lm W⁻¹ at 50 °C case temperature is yesterday’s chip.

L70 life: the hour mark when lumen output has fallen to 70 %. Ask for TM-21 test report based on 6000 h LM-80 data; 50 kh at Ta 45 °C is a honest industrial grade.

Thermal path: LED junction → MCPCB → heat-sink → ambient. Rule of thumb: heat-sink should weigh ≥ 2 kg per 100 W for passive cooling, or 1 kg with a quality fan.

Ingress rating: IP6X means dust-tight; the second digit 5 = water jets, 6 = powerful jets, 7 = temporary immersion, 8 = continuous. Mines usually ask IP66/67, factories IP65.

Impact code: IKxx (IEC 62262). IK08 = 5 J hammer, IK10 = 20 J.

Explosion groups:

- I (mining methane),

- IIA (propane), IIB (ethylene), IIC (hydrogen/acetylene).

Temperature class T6 (85 °C surface) is safest; T4 (135 °C) is usually enough for coal faces.

4. Optics: why 120 ° is not always better

Wide beam 120 ° gives uniform ceiling bounce in white-painted factories, but in 15 m high rack warehouses you waste half the light on the roof. Narrow 60 ° or 90 ° with aluminium reflector or polycarbonate Fresnel lens puts lumens on the work plane and saves 20–30 % energy. For underground roadways an asymmetric 70 ° × 140 ° bat-wing reduces glare for drivers.

5. Surge and EMC: the hidden killers

Industrial grids routinely see 2–6 kV transients. Demand:

- 4 kV differential / 6 kV common-mode surge per IEC 61000-4-5

- EMI CISPR 15/EN 55015 class B (otherwise your lamp will interfere with walkie-talkies and conveyor sensors).

Driver should have over-voltage, over-temperature and short-circuit protection, and accept 90–305 V AC or 127–430 V DC for three-phase tap-offs.

6. Flicker and health

Stroboscopic index < 0.1 at 100 Hz keeps rotating machinery looking stationary, preventing accidents. Ask for “flicker-free < 5 % @ 1 kHz” and IEEE 1789 certified driver.

7. Smart extras that pay back in 12 months

- DALI-2 or 0–10 V dimming + occupancy sensor = 30–60 % extra saving.

- NFC wireless programming: set current and dim curve from a phone instead of a ladder.

- Luminaire with embedded power-meter: mines get real-time kWh data for ISO 50001 audits.

- Red or green safety beacon LEDs on the same housing = emergency evacuation path without extra wiring.

8. Checklist: how to choose in 10 steps

1. Measure mounting height (h) and required lux on task. Quick formula: average lux ≈ (lumens × utilisation factor × maintenance factor) / area. For dirty coal dust use 0.5 maintenance factor.

2. Pick optic: 15–20 m high → 60 °; 8–12 m → 90 °; < 8 m → 120 °.

3. Decide explosion class: surface gas IIA, underground coal I + methane, hydrogen tank farm IIC.

4. Select IP/IK: outdoor stockpile IP66 IK08; underground pump room IP67 IK10.

5. Calculate wattage: 100 lux in a 30 × 50 m workshop needs ~150 klm; at 150 lm W⁻¹ that is 1000 W total, so ten 100 W high-bays.

6. Verify L70 ≥ 50 kh at 45 °C ambient; ask for TM-21 report, not marketing “100 kh” without data.

7. Check surge 6 kV, flicker < 5 %, THD < 10 %.

8. Choose colour temperature: 4000 K neutral white for factories, 2700–3000 K for low-glare underground, 5000 K for CCTV colour fidelity.

9. Evaluate optic + reflector material: 1060 aluminium with anodised layer ≥ 10 µm or 99 % purity Macular reflector keeps 95 % reflectance after 10 000 h salt fog.

10. Compare total cost: lamp price + install cost + energy + maintenance. A 150 W 190 lm W⁻¹ LED at 0.12 $ kWh⁻¹ saves ~600 $ per 1000 W HPS over 5 years.

9. Red flags when shopping

- No LM-79 or LM-80 report → walk away.

- Heat-sink under 0.8 kg per 100 W → will throttle and die early.

- Single-layer 1 mm PCB → hot spots, colour shift.

- Driver potted only on the input side → moisture creeps into the output, fails in six months.

- “Explosion-proof” but only ATEX II 3 G (zone 2) → not safe for zone 1 coal face.

- Warranty 1 year → industry standard is 5 years on LED, 2 years on driver.

10. Quick glossary (for your RFQ email)

CBCP: centre beam candle-power

UGR: unified glare rating (< 25 for workshops)

SPD: spectral power distribution

Ta: ambient temperature

Tc: case temperature at LED

TP: thermal pad temperature used for lifetime calculation

POE: power-over-Ethernet (for smart lamps)

Zhaga: standardised LED light-engine interface.

Take-away sentence: Buy lumens-per-watt and verified lifetime, not watts-per-dollar; the cheapest lamp is the one you install once and forget for a decade.
